Split AC Installation Guide

Proper split AC installation is crucial for unlocking its full potential and reaping long-term benefits. Beyond just cooling your space, a correctly installed split AC enhances energy efficiency, ensuring optimal performance while keeping utility bills in check. The process, though seemingly intricate, offers ease of installation, making it an accessible upgrade for any homeowner.

Let’s delve into the significance of meticulous installation, emphasising the seamless experience and energy-saving advantages that come along a well-installed split AC system.

How to Install Split AC (Step-by-Step Instruction)

Installing a split AC doesn’t have to be a daunting task; with the right guidance, it can be a rewarding DIY project. This step-by-step guide provides detailed instructions on each stage of the AC installation process, ensuring you can enjoy a cool and comfortable home environment efficiently.

Step 1: Selecting the Right Location for Indoor and Outdoor Units

Choosing the optimal location for your split AC units is crucial for efficient performance. Here’s what you need to consider:

• Ideal locations that accommodate both indoor and outdoor units.
• Avoiding direct sunlight and heat sources to enhance the unit’s effectiveness.
• Ensuring proper airflow by maintaining open space around the indoor unit.
• Selecting a sturdy wall to support the weight and minimise vibrations.

Step 2: Mounting the Indoor Unit

Properly securing the indoor unit is essential for a successful installation. Here’s the detailed instructions for that:

• Secure the mounting plate to the selected wall, ensuring it is level both horizontally and vertically.
• Drill holes in the wall, insert plastic anchors and secure the plate with tapping screws.
• Position the unit 7 feet above the floor and at least 6–12 inches away from surrounding obstacles.
• Run copper pipes, power cables, and drain pipes through the drilled hole, securing them to the indoor unit as per the instruction manual.

Step 3: Preparing for Outdoor Unit Installation

Before installing the outdoor unit, make sure you’ve covered these critical steps:

• Choose a suitable location, away from heavy traffic, dust, and direct sunlight.
• Lay a concrete pad to provide a stable base for the outdoor unit.
• Ensure at least 12 inches of space surrounds the unit for proper functionality.
• Secure the outdoor unit to the concrete pad using anchor bolts.

Step 4: Electrical and Pipe Connections

Connectivity is key to the split AC’s functionality. Follow these steps to ensure safe and efficient electrical and pipe connections:

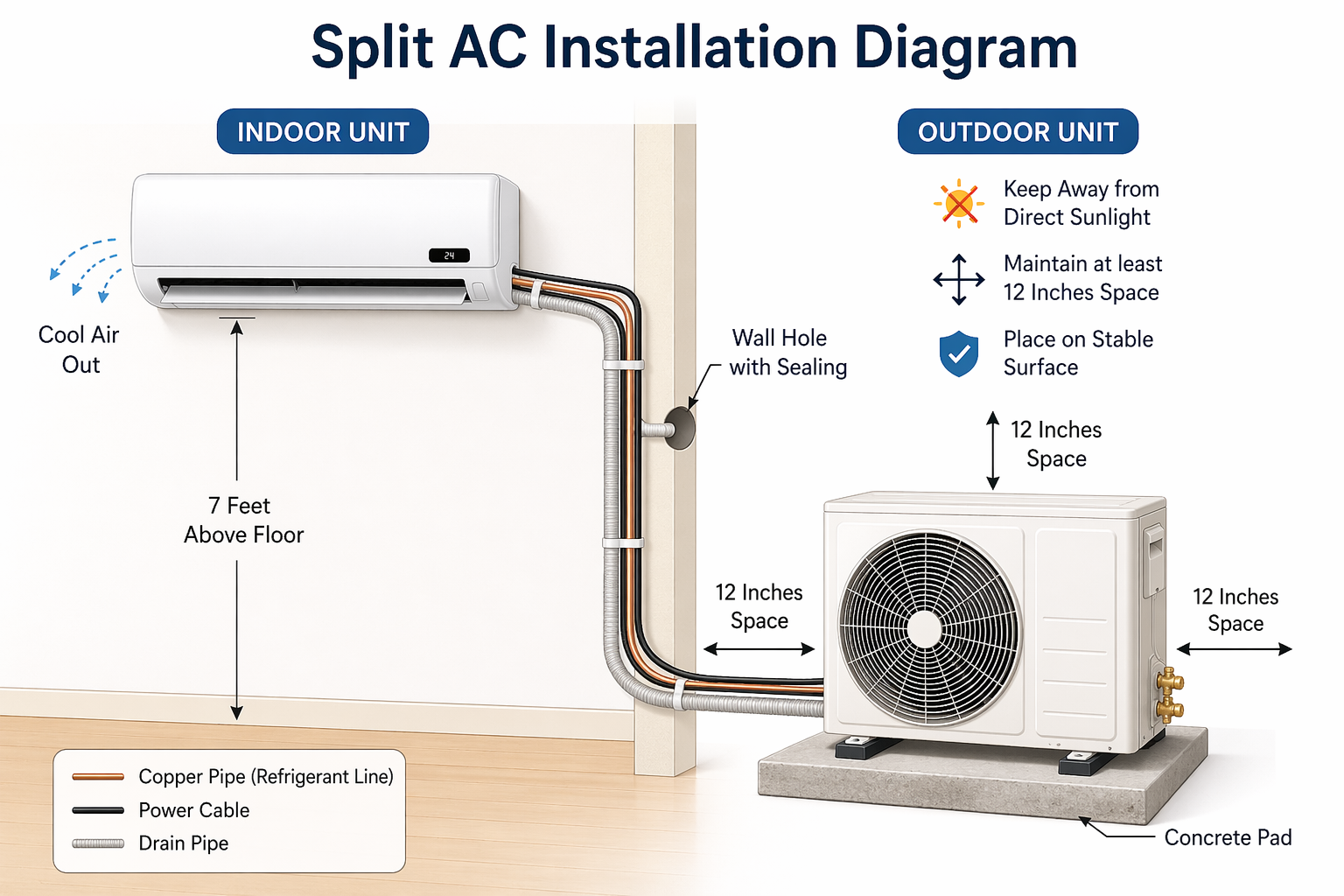

• Check the electrical connections on the indoor unit, ensuring proper wiring as per the unit’s split AC installation diagram.
• Bundle and secure copper pipes, power cables, and drain pipes with electrical tape.
• Connect the pipes and cables to the designated spots on the indoor unit, following the manufacturer’s instructions.
• Verify compliance with safety standards when connecting electrical wires to the outdoor unit.

Step 5: Final Checks and Sealing

Before enjoying the cool breeze, perform these final checks and ensure a sealed installation:

• Bleed air from the refrigerant circuit, testing valves and joints for leaks.
• Connect a vacuum pump to the service port and ensure an absolute vacuum of 10mm Hg.
• Affix pipes to the wall with clamps to prevent movement.
• Seal the wall hole with expanding polyurethane foam to prevent air or insects from entering.

By following these steps, you’ll successfully install a split AC, ensuring optimal performance and a comfortable living space.

Common Mistakes to Avoid During Installation

When undertaking a DIY installation of a split AC, it’s crucial to be aware of common pitfalls that can compromise the effectiveness and longevity of your cooling system. By steering clear of these typical errors, you’ll ensure a smooth and successful installation process.

Incorrect Location Selection

Mistake: Choosing a location based solely on convenience rather than considering factors like sunlight exposure, airflow, and structural support.

Avoidance: Carefully assess the installation area, ensuring it meets all necessary criteria, such as avoiding direct sunlight, providing ample space, and selecting a sturdy wall.

Poor Mounting of Indoor Unit

Mistake: Inadequate mounting of the indoor unit can lead to vibrations, reduced efficiency, and potential damage.

Avoidance: Follow precise instructions for securing the mounting plate, ensuring it’s level and positioned correctly. Pay attention to details like height and distance from surrounding surfaces.

Neglecting Proper Outdoor Unit Placement

Mistake: Placing the outdoor unit in a high-traffic or dusty area can impact performance and maintenance.

Avoidance: Choose a location with enough space, away from heavy traffic, dust, and direct sunlight. Lay a stable concrete pad for the outdoor unit to prevent shifting.

Inaccurate Electrical and Pipe Connections

Mistake: Incorrect wiring or poorly connected pipes can lead to operational issues and safety hazards.

Avoidance: Double-check the electrical connections on the indoor unit, ensuring proper alignment. Follow the manufacturer’s guidelines precisely when connecting pipes and cables, prioritising safety standards.

Skipping Final Checks

Mistake: Neglecting final checks, such as bleeding air from the system and ensuring a sealed installation, may result in inefficiencies.

Avoidance: Thoroughly perform all final checks recommended in the installation process. Test valves and joints for leaks, connect a vacuum pump to the service port and seal any wall holes with expanding polyurethane foam.

By steering clear of these common mistakes, you’ll not only enhance the performance of your split AC but also contribute to its longevity. A meticulous and informed approach to installation ensures a cool and comfortable living space for years to come.
